Product Description
- Complete water pump rebuild kit for BF9.9A and BF15A Honda outboards
- Genuine Honda part
- Honda part number: 06193-ZV4-000
- Please contact us with your serial number if you are not sure if this part is correct for your engine
Fits the Following 9.9 HP Honda Outboards:
- 1997 BF9.9AM short shaft (15") with frame serial number BABS-1200681 and above
- 1997 BF9.9AM long shaft (20") with frame serial number BABL-1200828 and above
- 1997 BF9.9AM extra long shaft (25") with frame serial number BABU-1000001 and above
- 1998-2000 BF9.9AW, BF9.9AX and BF9.9AY
Fits the Following 15 HP Honda Outboards:
- 1997 BF15AM short shaft (15") with frame serial number BAAS-1201183 and above
- 1997 BF15AM long shaft (20") with frame serial number BAAL-1201053 and above
- 1997 BF15AM extra long shaft (25") with frame serial number BAAU-1000001 and above
- 1998-2002 BF15AW, BF15AX, BF15AY, BF15A1 and BF15A2

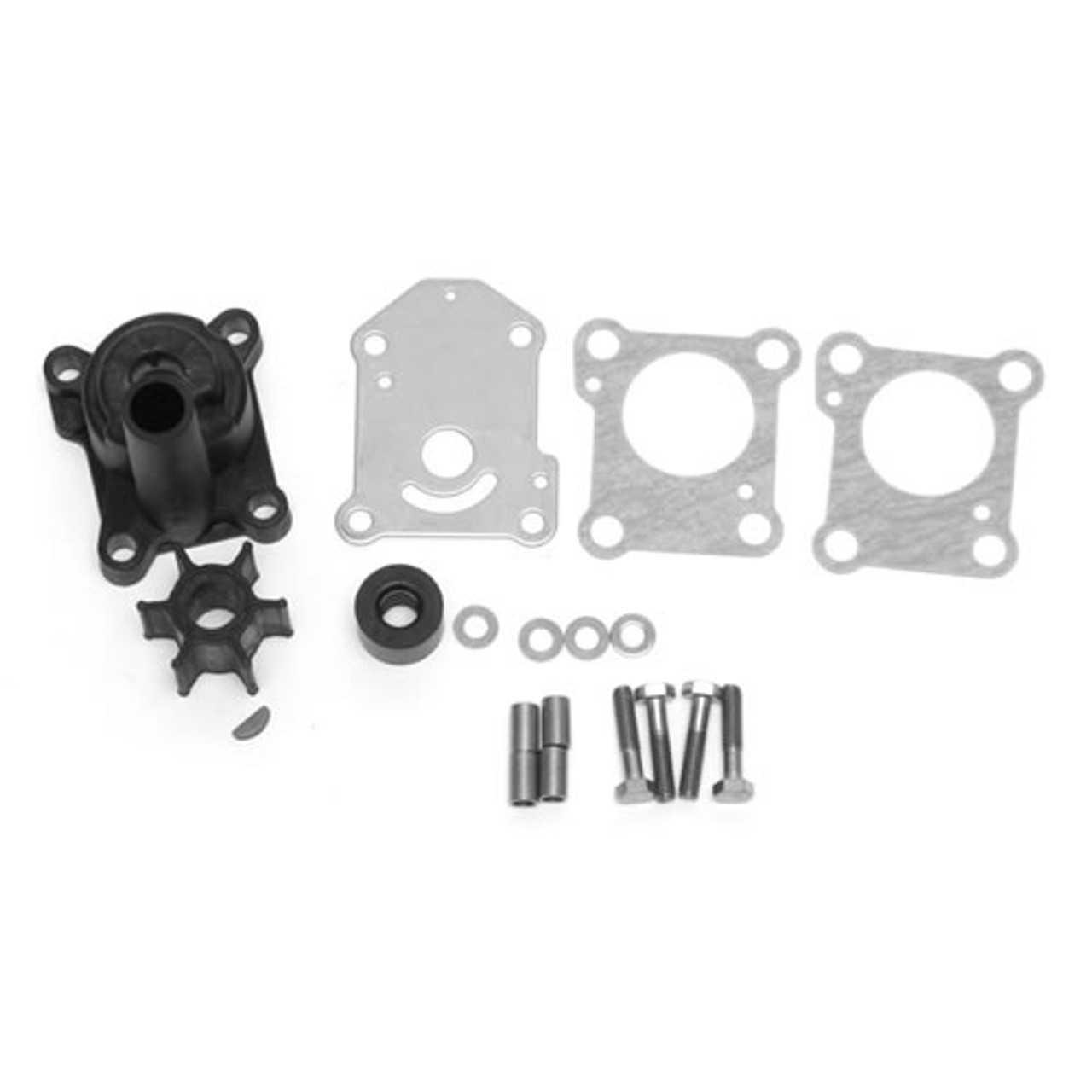

Kit Contains the Following Components:
- (1) Water Pump Impeller (19210-ZV4-651)
- (1) Impeller Housing (19220-ZV4-000)
- (1) Impeller Cover (19231-ZV4-010, 19231-ZV4-020)
- (2) Impeller Gasket (19232-ZV4-010, 19232-ZV4-610)
- (1) Water Tube Seal (19253-ZV1-000)
- (4) Bolt (90108-881-000)
- (4) Distance Collar (90112-881-000)
- (4) Washer (90504-921-010)
- (1) Impeller Keyway (90752-ZV4-650)
